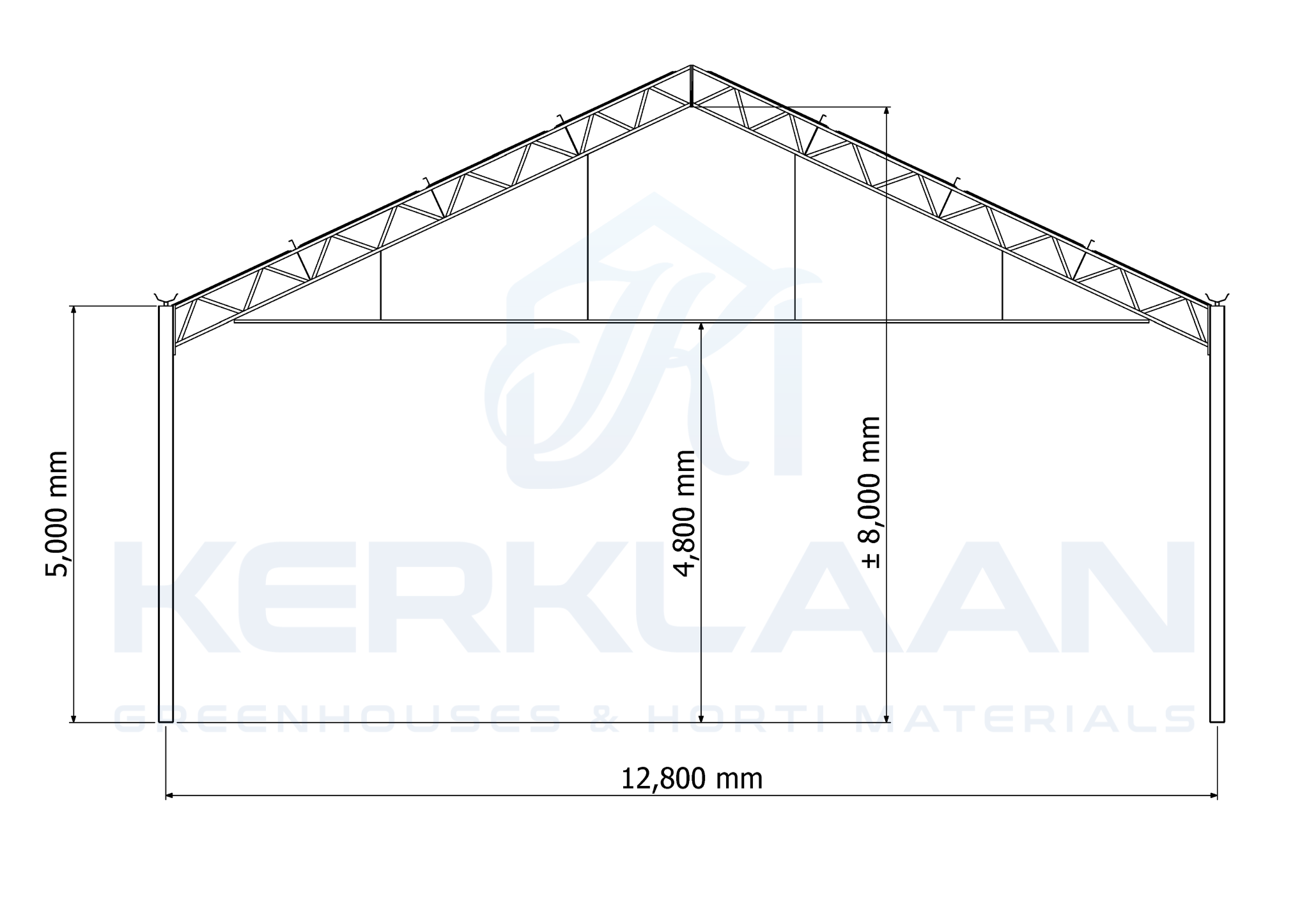

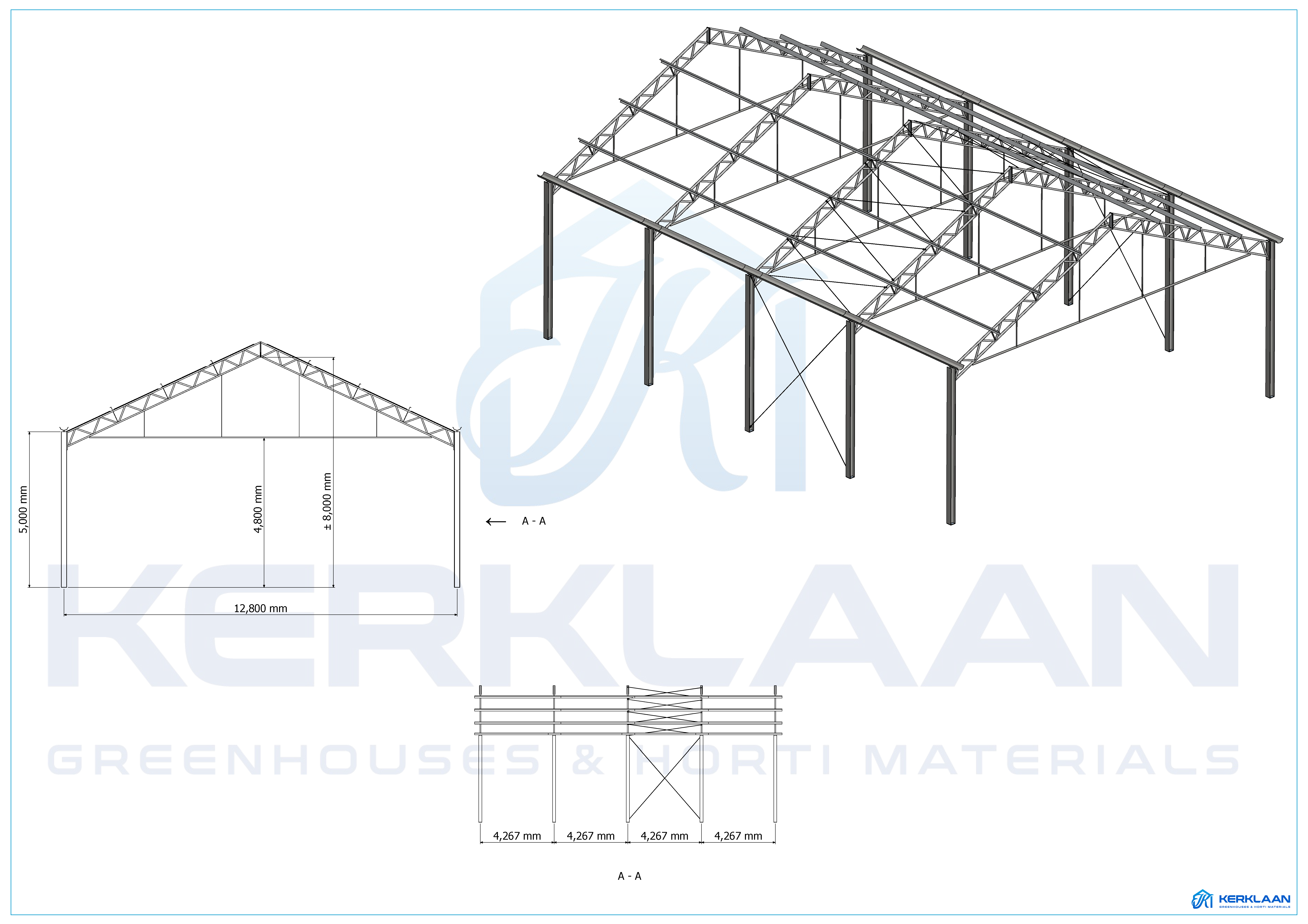

Complete steelconstruction 218 m²
Dimensions: 12.80 m x 17.00 m
- Category:
- Greenhouses
- Type:
- Used greenhouses
- Product type:
- Steel contstruction
Specifications
- Surface:
- 328 m²
- Width:
- 12.80 m
- Length:
- 17.00 m
- Free height:
- 4.80 m
- Ridge height:
- ± 8.00 m

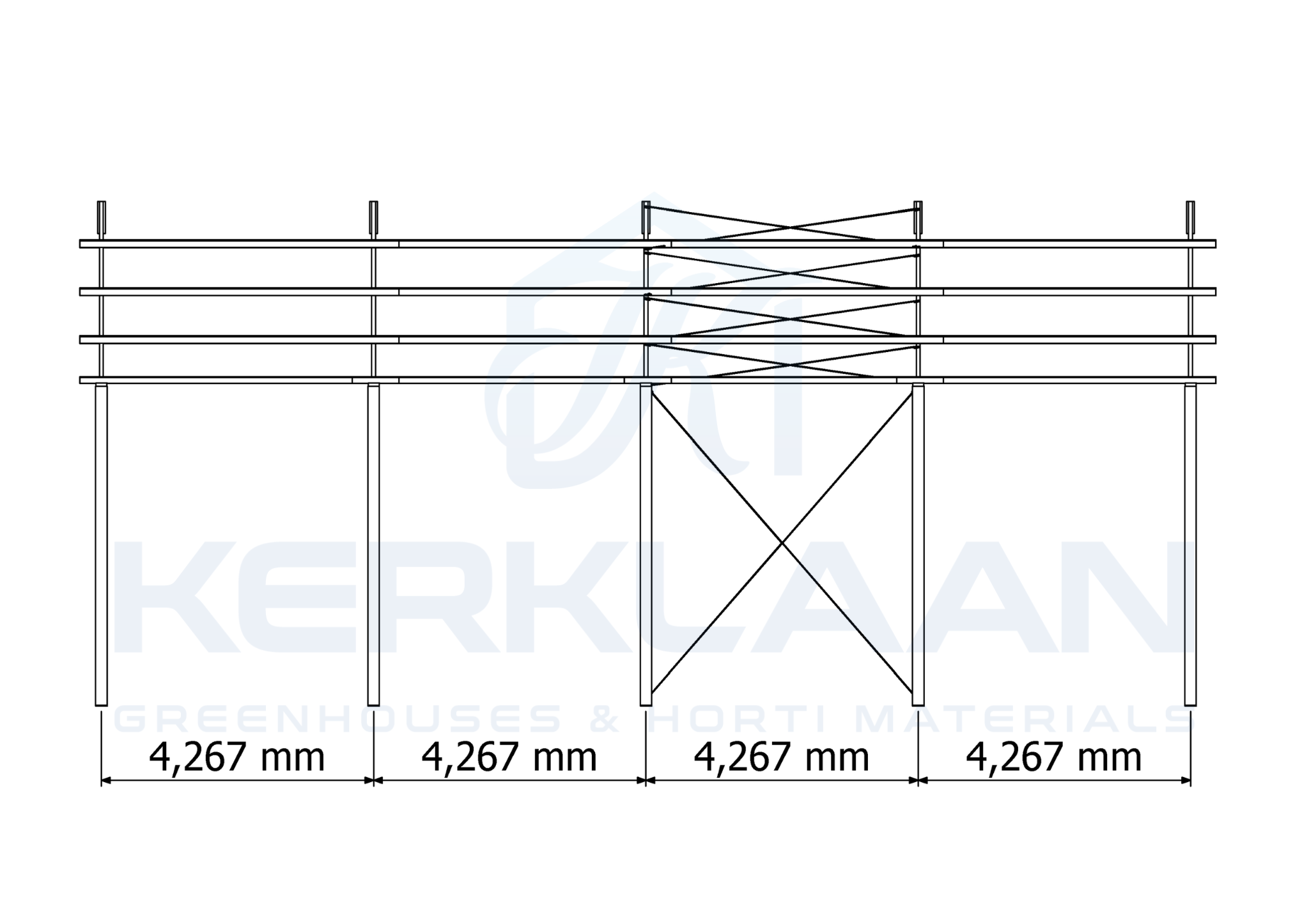

- Section size:
- 4.27 m

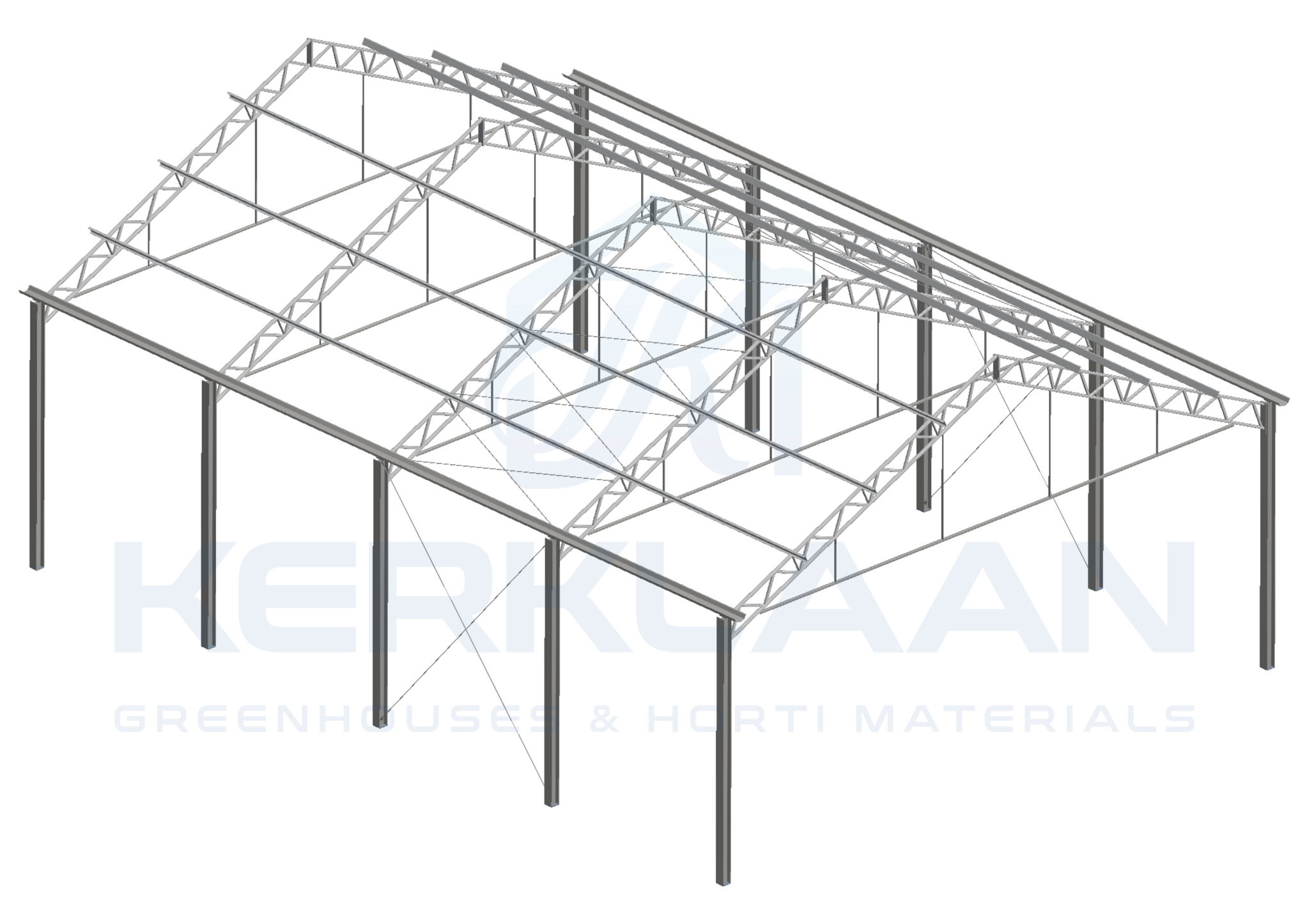

Consisting of:
5 sets of wide span truss, span 12.80 m
10 pieces column 120x60 mm L=5000 mm
10 sets of cross brace (per set of 2 hollow tubes and 2 swivels)
35 meters of steel gutter
105 meters of roof purlin
Various bolts and nuts
