Aweta rose grading machine incl. IRISS sorting system & sealer

Capacity: 8500 roses/hour

Category:
Flowers
Type:
Sorting and bunching machines
Product type:
Rose sorting machines
Brand:
Aweta

Specifications

Capacity:
8500 roses/hour
Type:
Aweta TRS-2 9/9
i Sorting System

4 camera's

x
Sorting System:
IRISS
i Number of bunching machines

-10 right, including buffer belt (length: 2100 mm)
- 5 links, including buffer mat.

x
Number of bunching machines:
15

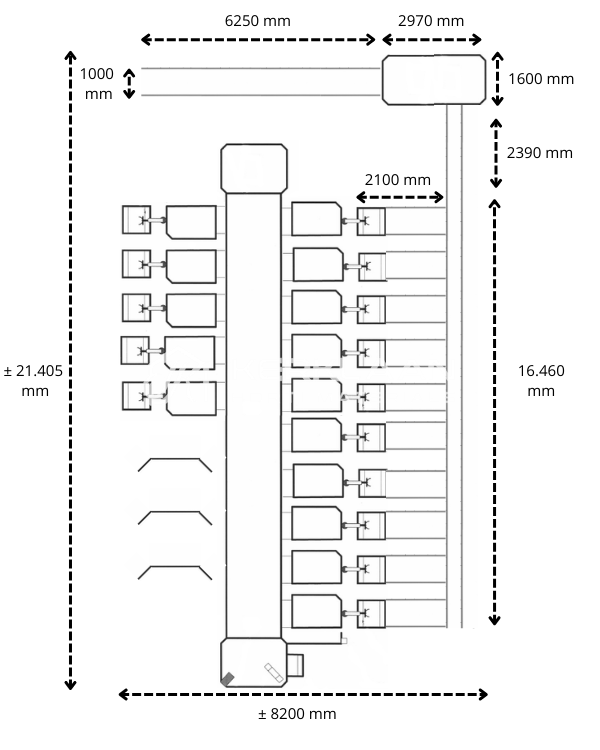

Number of hanging places:
3
Length buffer belt (10 pieces):
2100 mm
V-band length:
16.460 mm
V-band length (short):
2390 mm
Total length installation:
± 21.405 mm
Total width installation:
± 8200 mm
i Sealer

fast model
Length: 2970mm
Width: 1600mm
Outfeed belt length: 6250 mm Outfeed belt width: 1000 mm

x
Sealer:
Aweta RS-4A

IRISS Rozen stands for a higher yield in rose processing, for reliability & efficiency, uniformity & quality in roses, but also for simplicity in use and maintenance.

IRISS Rozen uses cameras that can perfectly map the rose by means of three-dimensional measurements. The width, height and ripeness of the bud are measured at a glance. Even the color of the button is well portrayed.

The length measurement of the stem is very important, because every millimeter is valuable. The stem is no longer cut unnecessarily short by overhanging leaves. In addition, the thickness and curvature of the stem are measured. This increases the average stem length of the entire batch.
