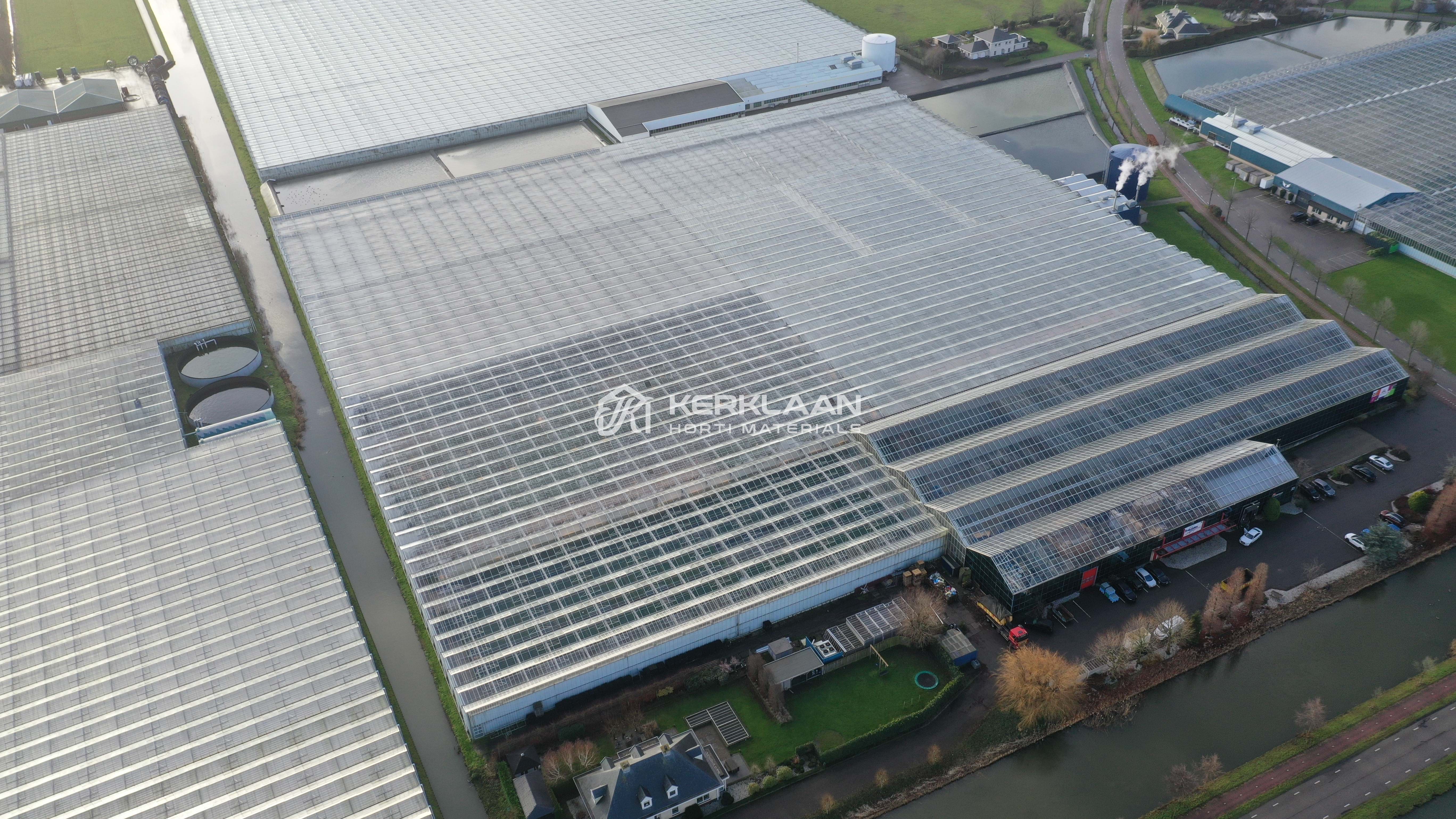

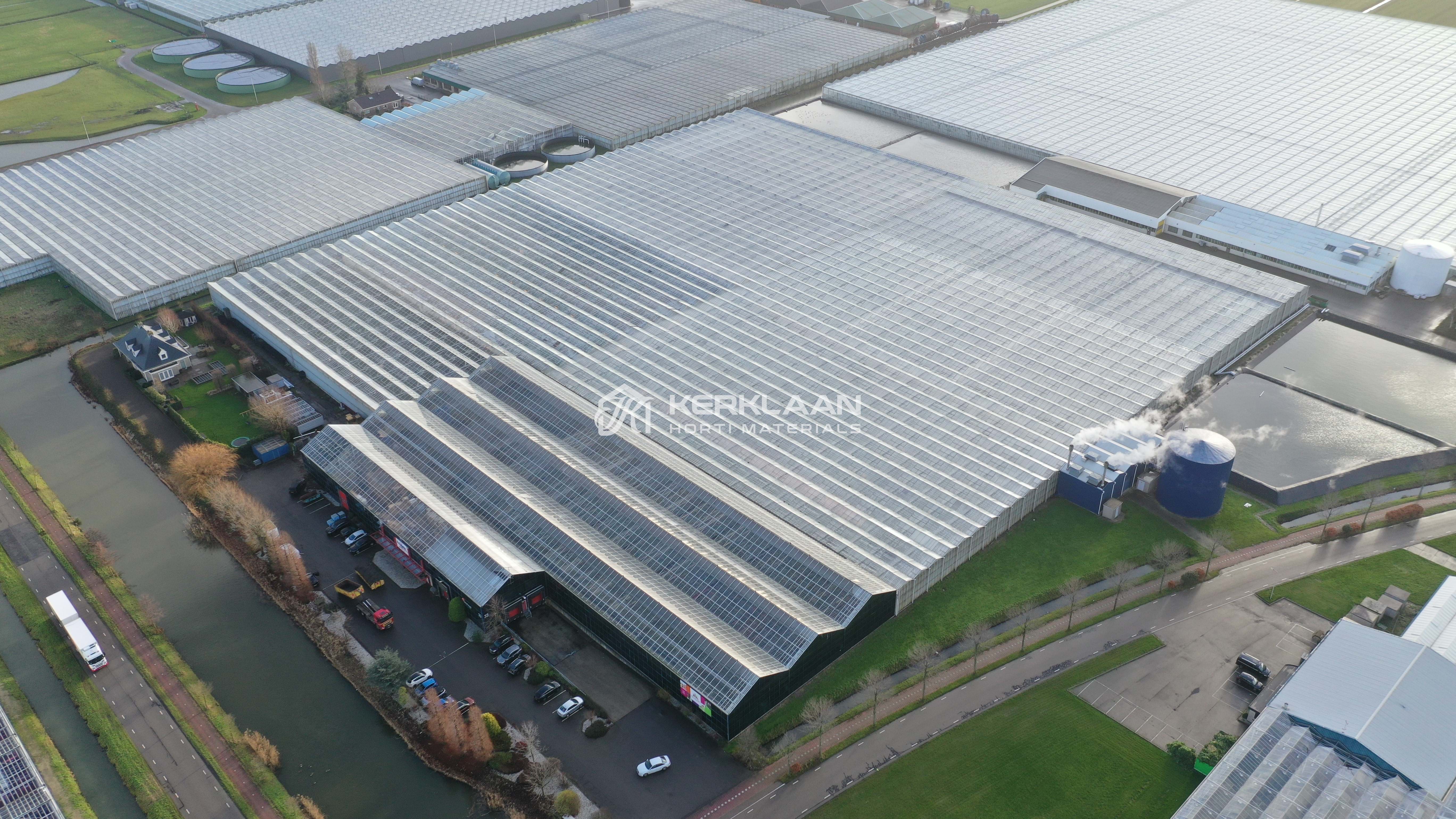

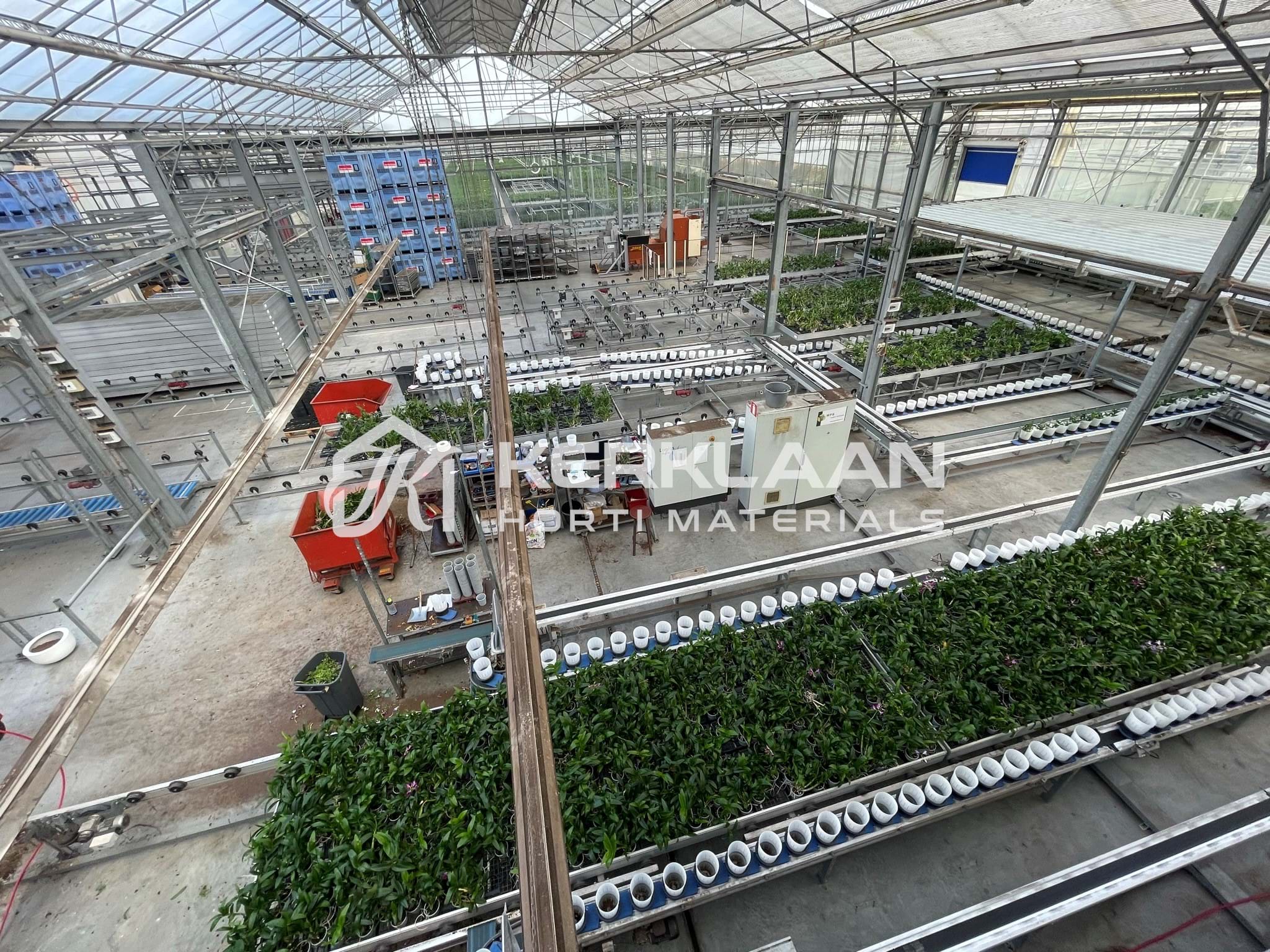

Complete turn-key Venlo greenhouse 38.103 m²
Suitable for the cultivation of potted plants
- Category:
- Greenhouses
- Type:
- Used greenhouses
- Product type:
- Turn-key greenhouses
Specifications

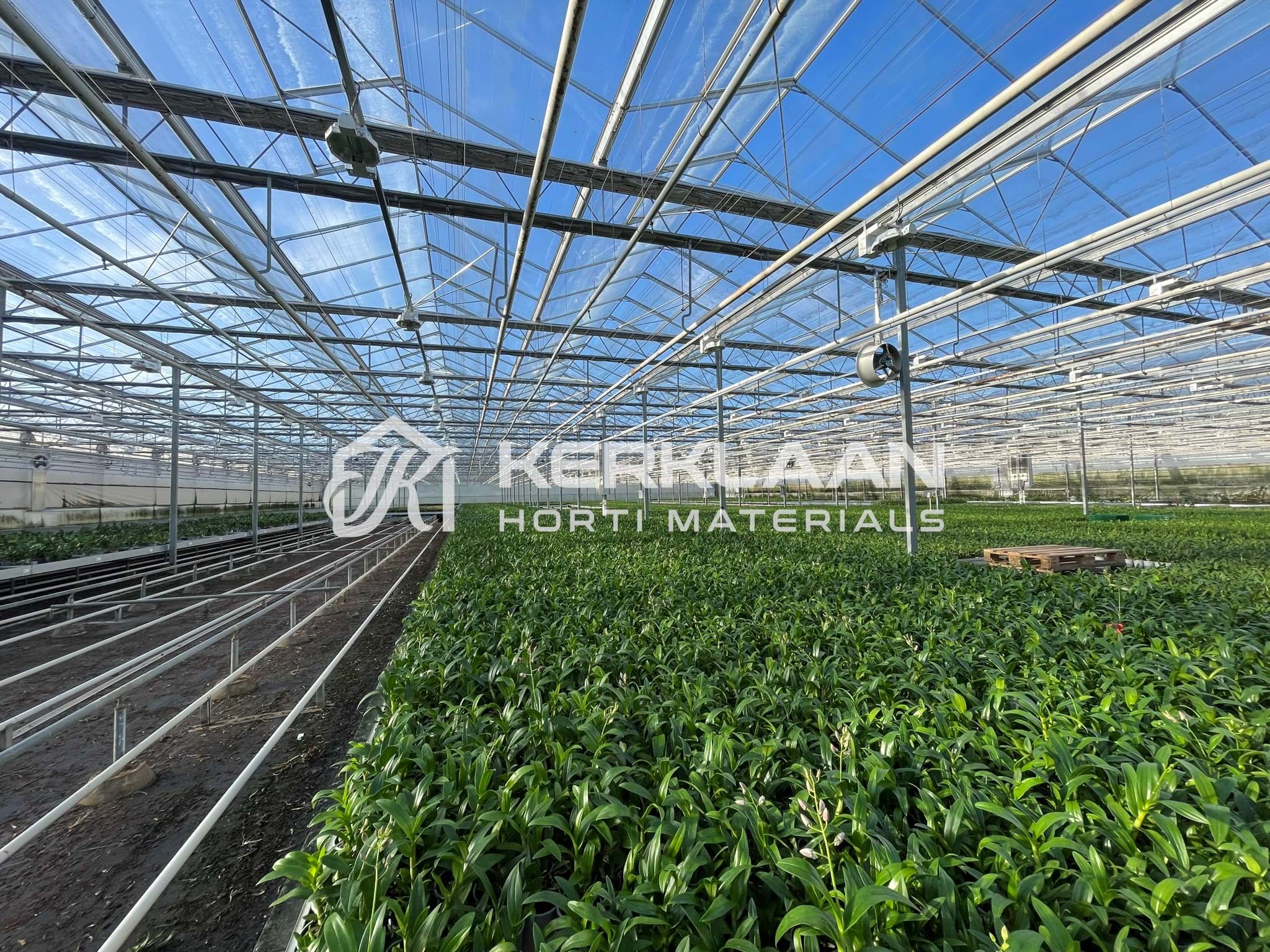

- Venlo greenhouse 33,150 m²:
- Trellis: 12.00m | Section size: 4.50/5.00m | Postheight: 5.00m | Aluminum gutter

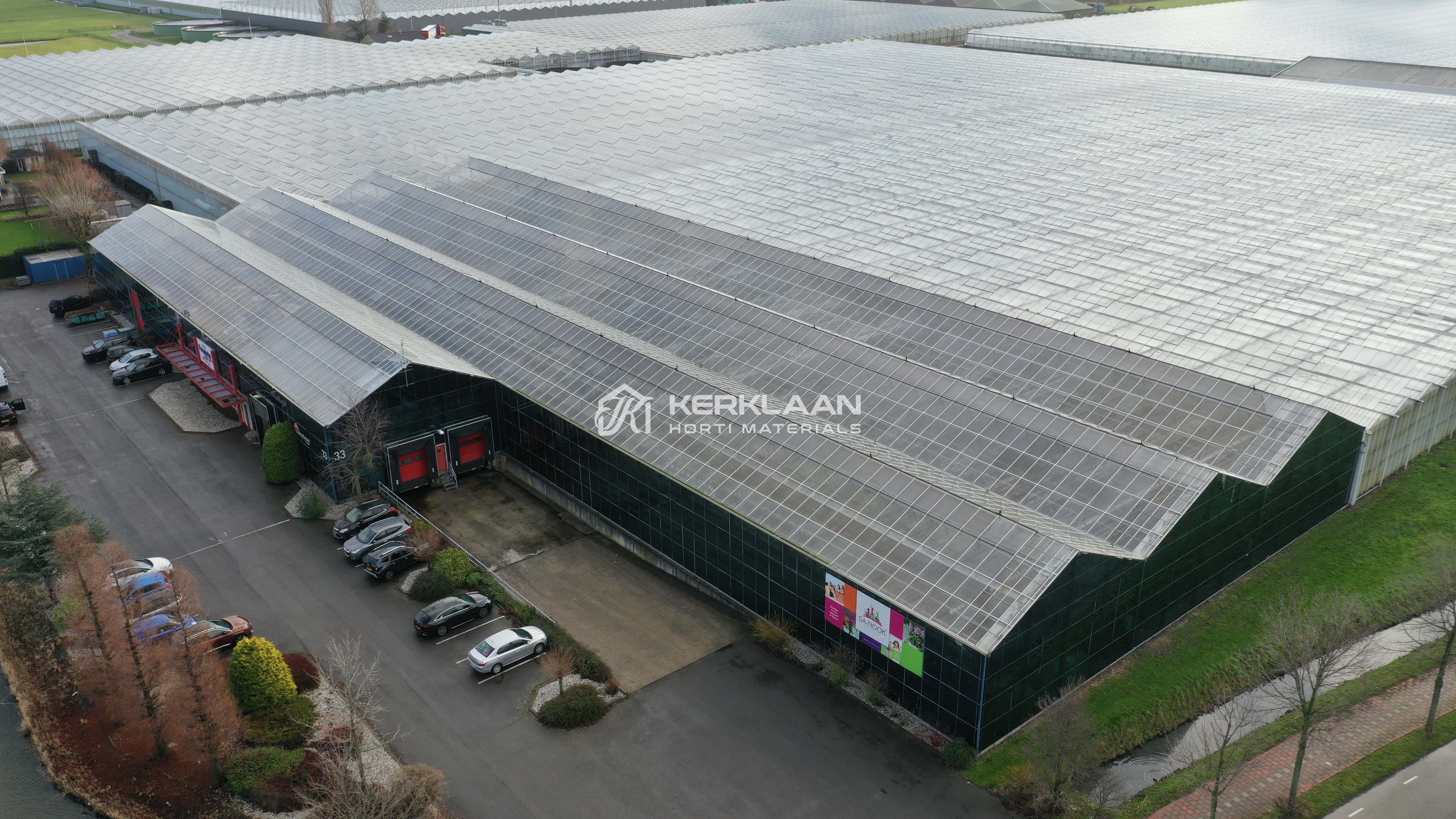

- Processing space 4.953 m²:
- Trellis: 12.80m | Secion size: 4.50m | Postheight: 5.50m
- Including:
- Screen installation
-
i

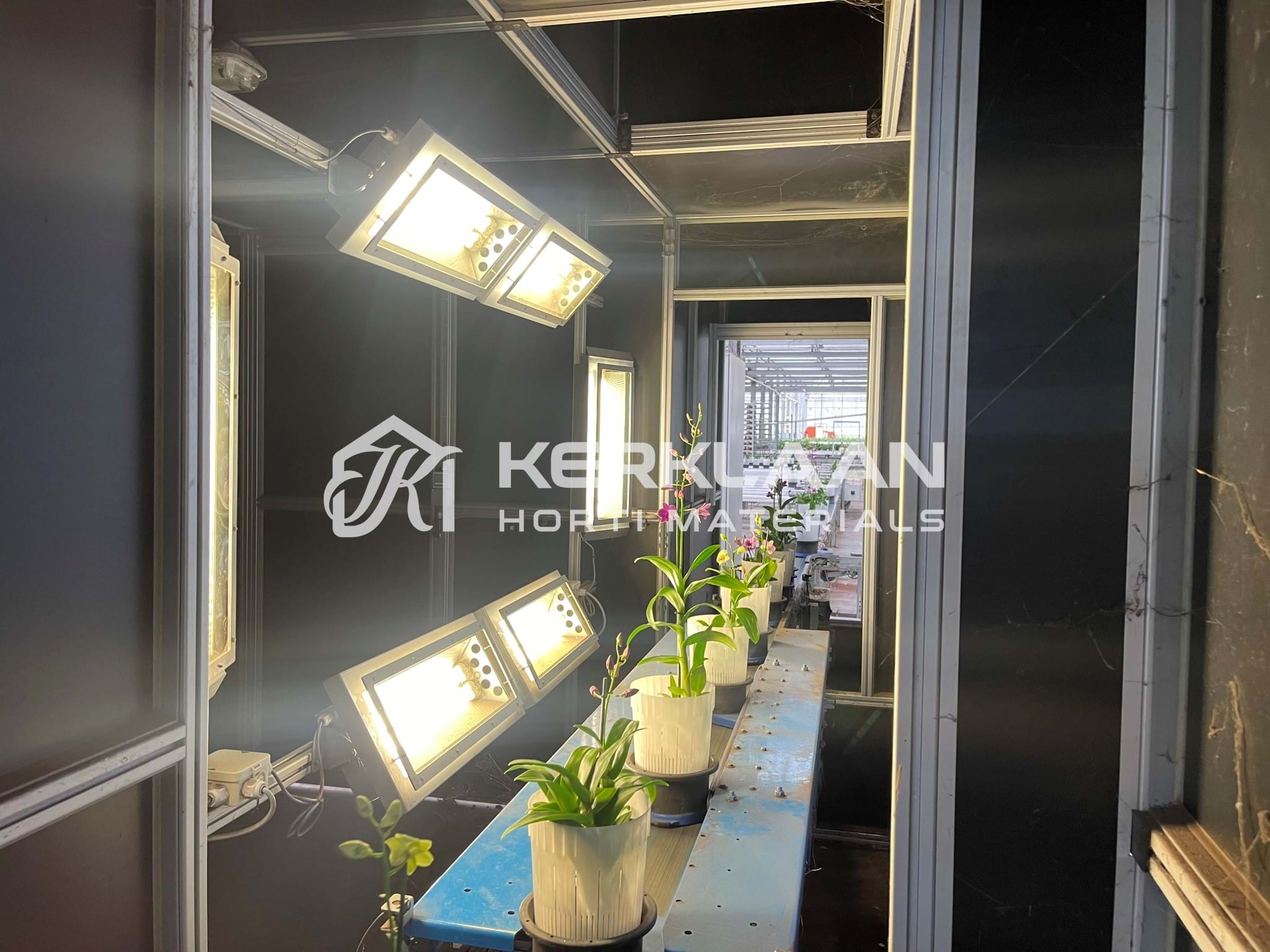

Lighting installation
Lighting installation:
Including: C-profile 45x45mm 7,500 m
- HS2000 600W/400V ±1,833 pieces | HSE 1000W/400V ±1,300 pcs
-
i

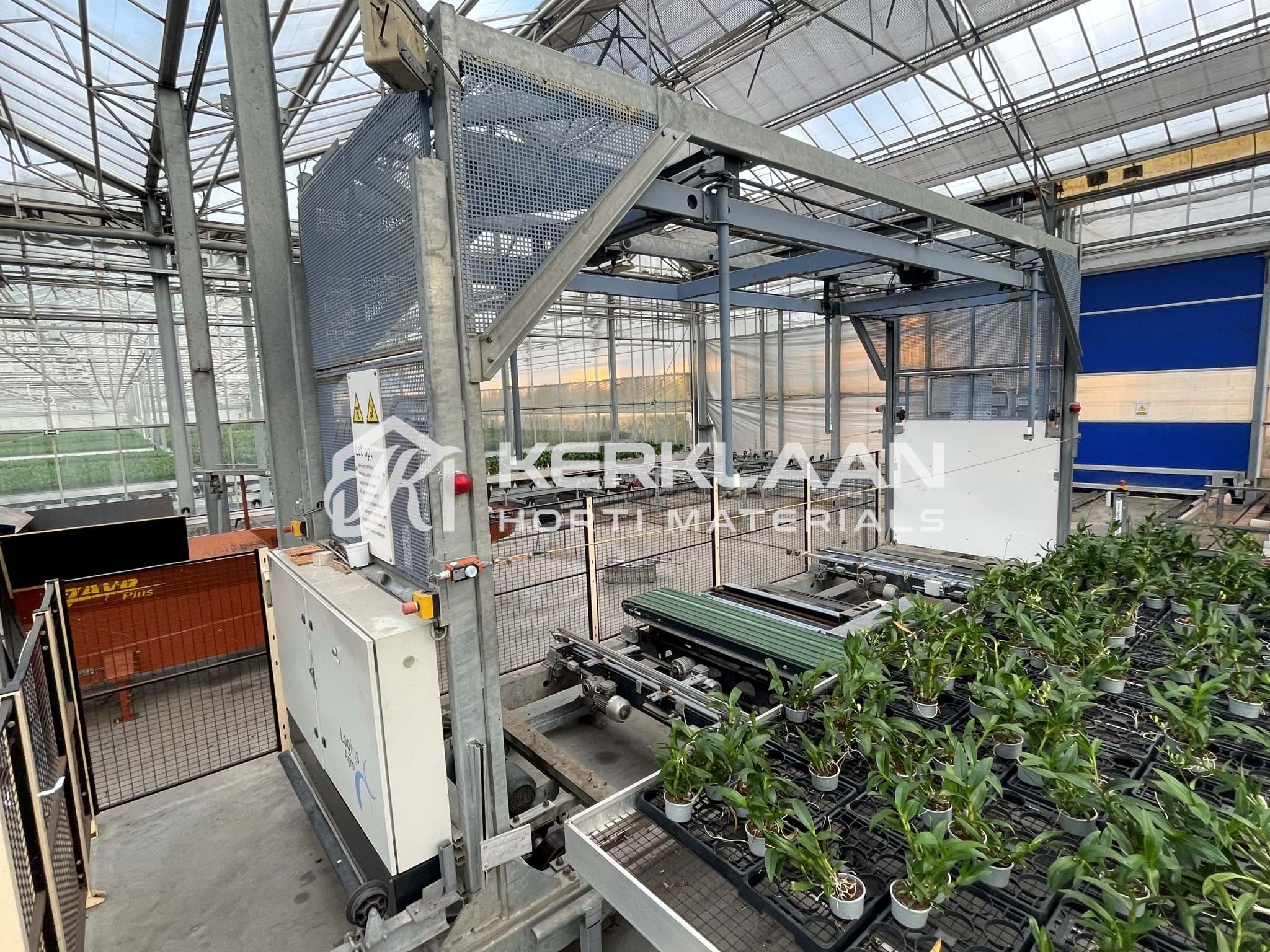

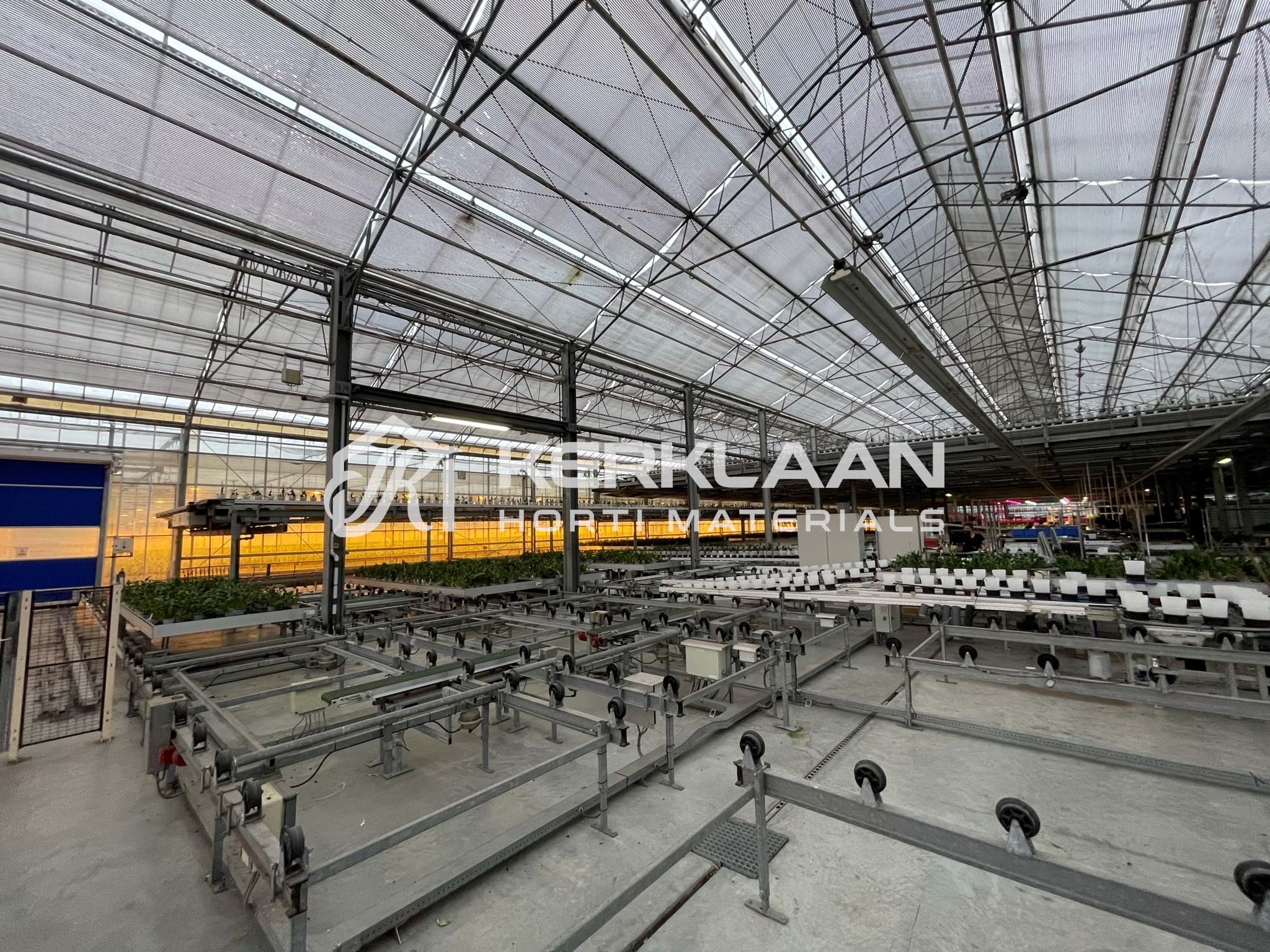

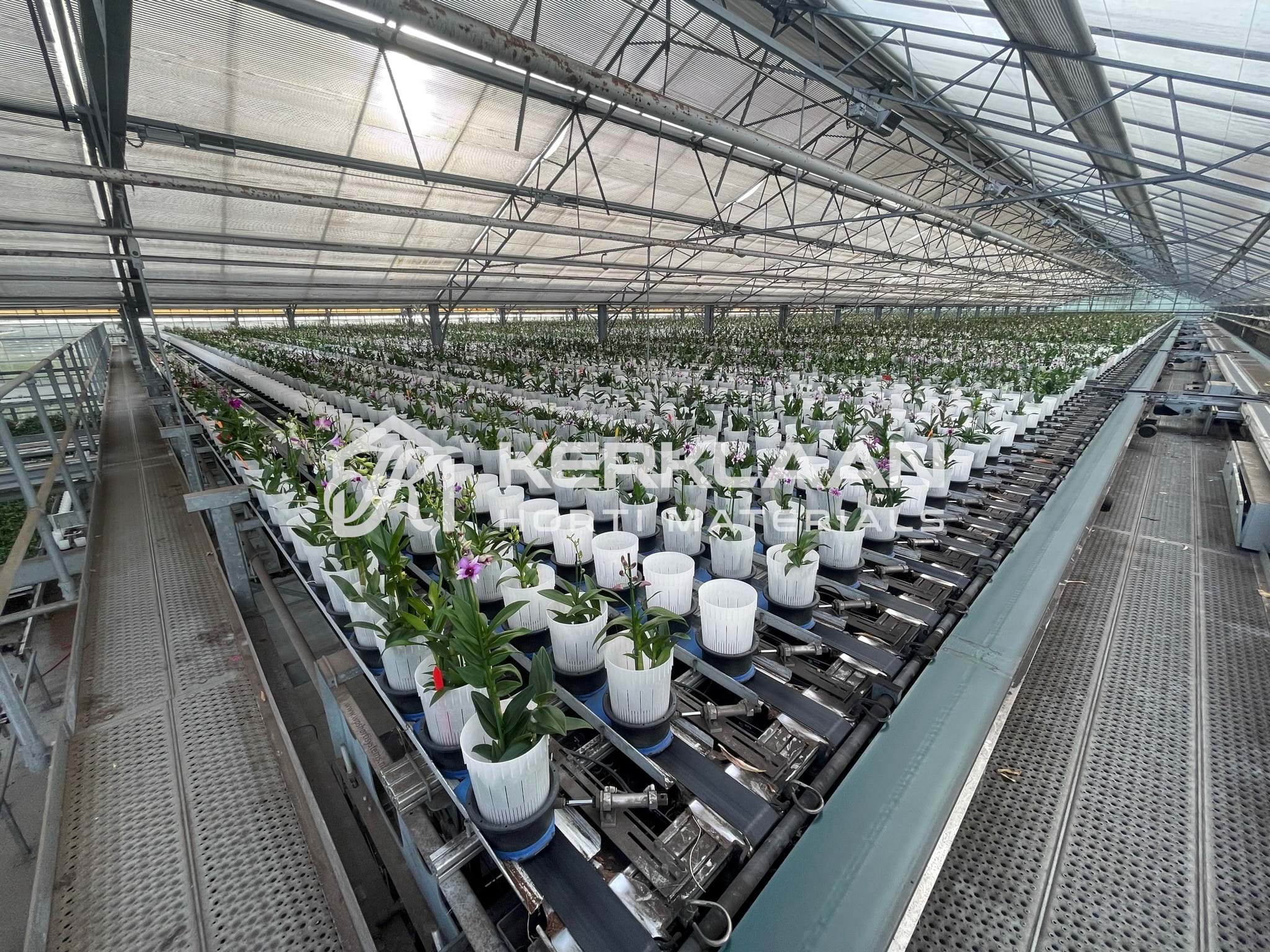

Automatic mobile container system
ncluding: - Complete substructure: supports, rail tubes and girders.

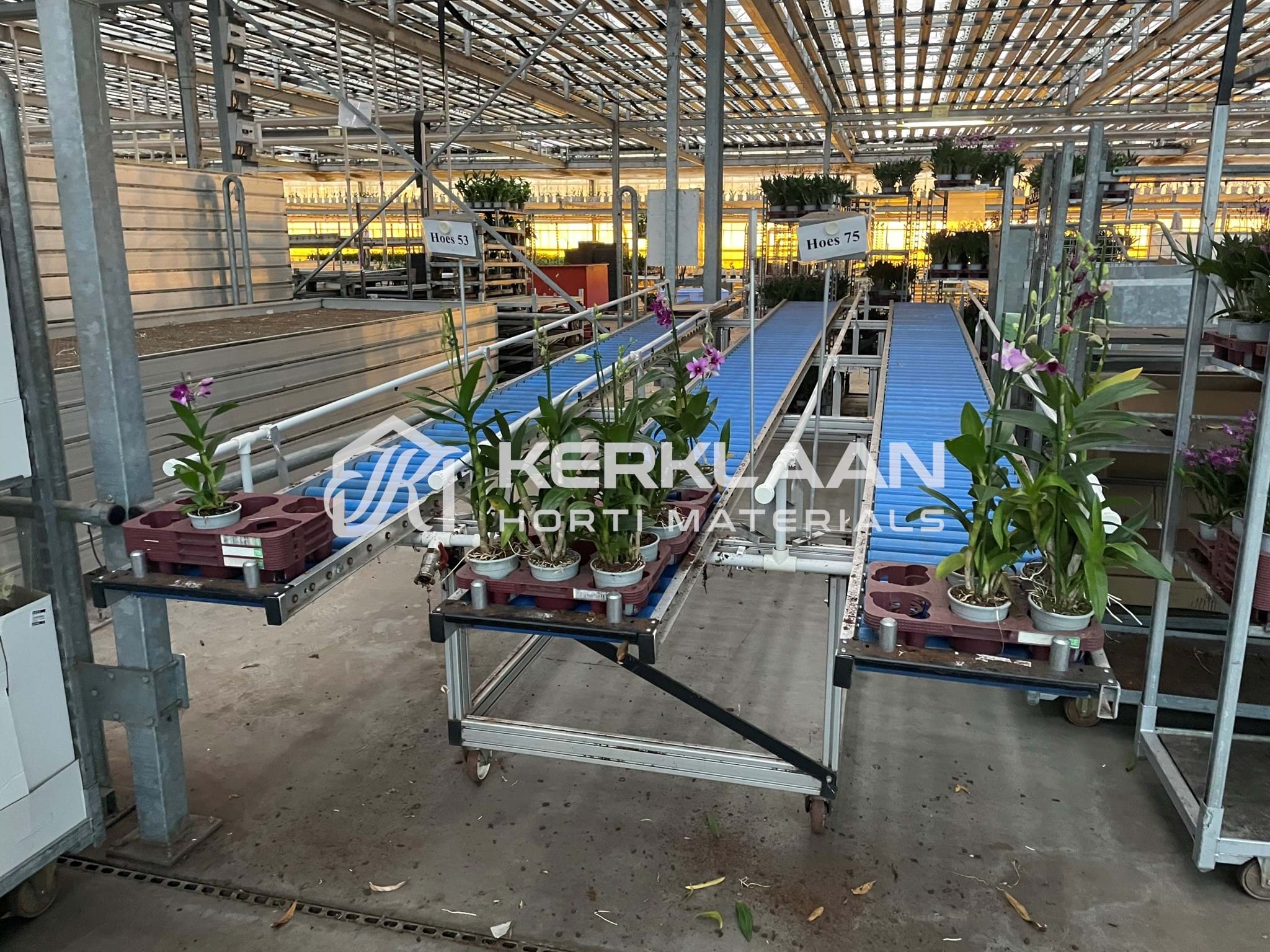

Automatic mobile container system:
- Container tracks, work positions, pushers, pick-up and flail tracks

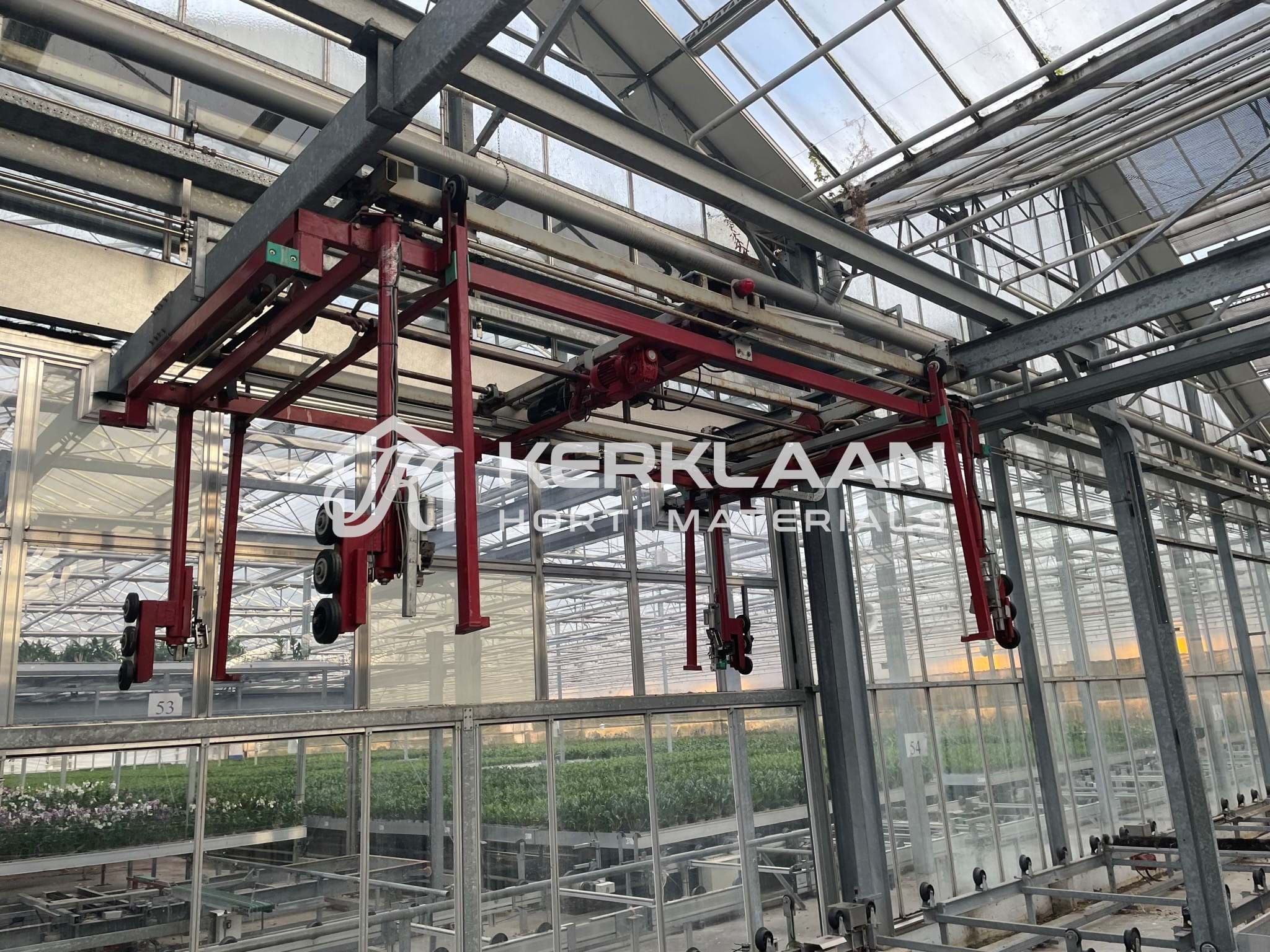

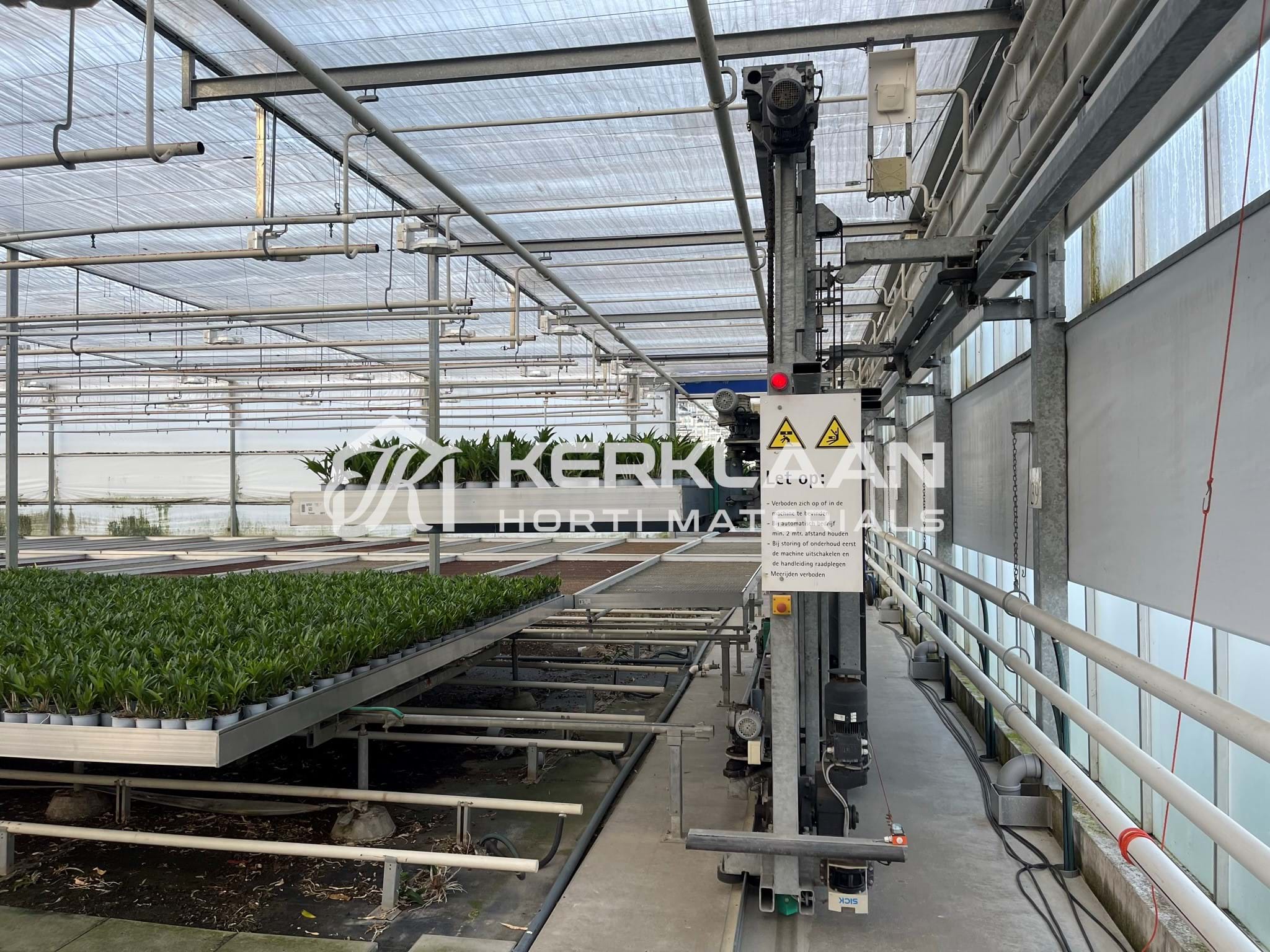

- Overhead crane, overhead stacker, 2 pcs. facade train + 1 pc. path train in the middle incl. rails and portals.
- Concrete walking tiles 60 x 40

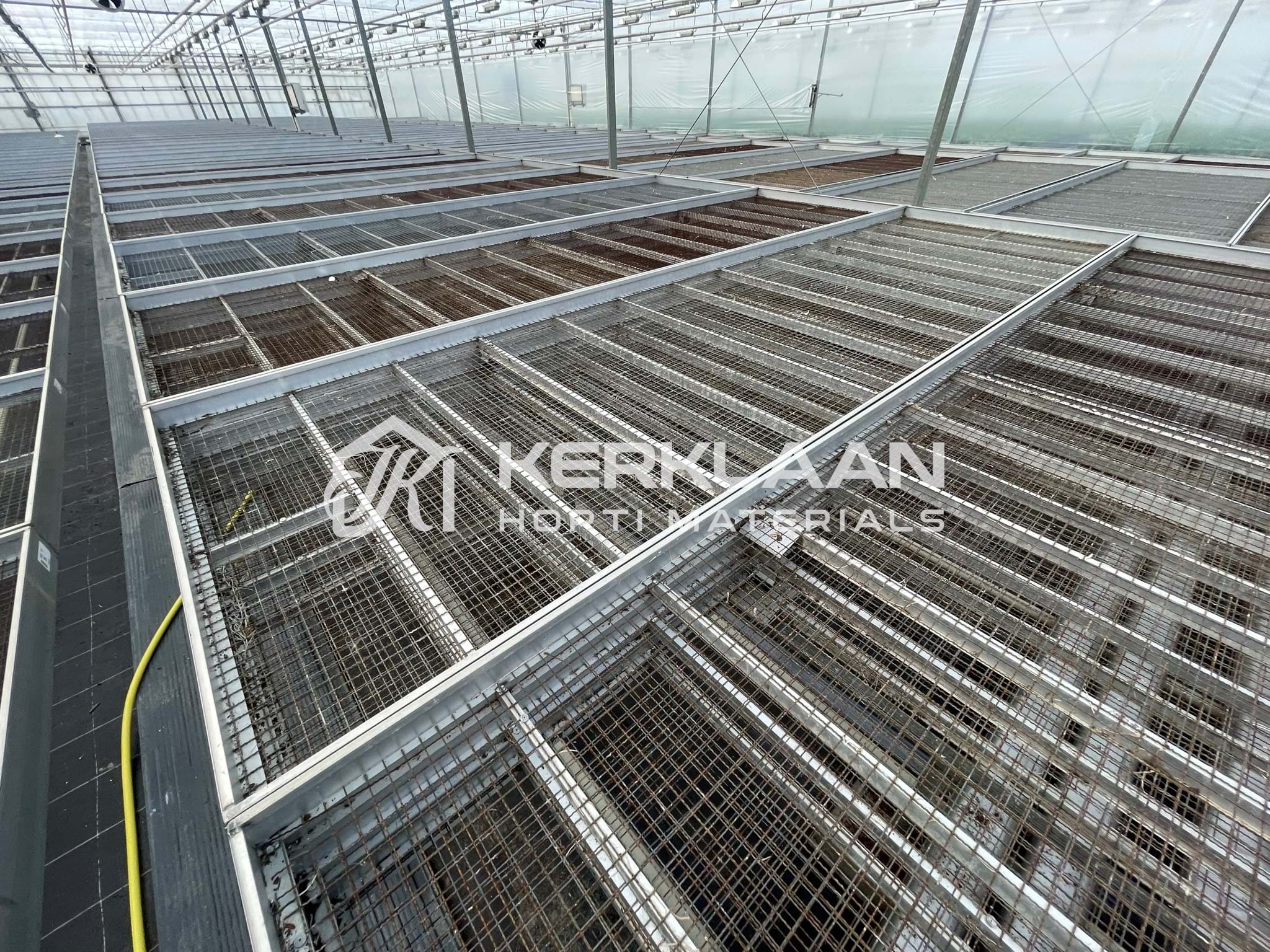

- Compressor - Aluminum roll containers 5,700x1720mm | Mesh bottom | ±3,100 pieces
-
i

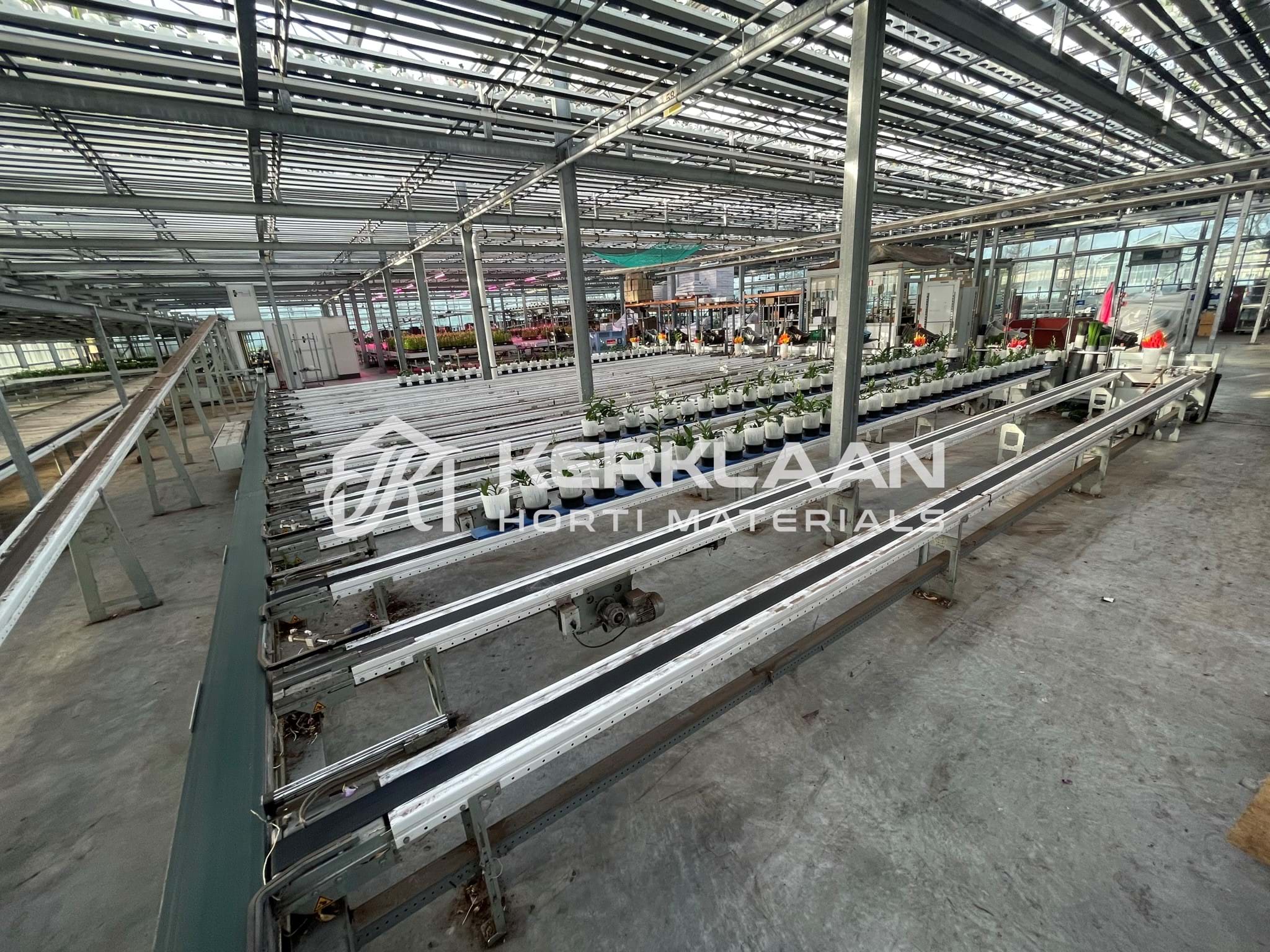

WPS system
- Buffer systems in processing area (3,340 m²)

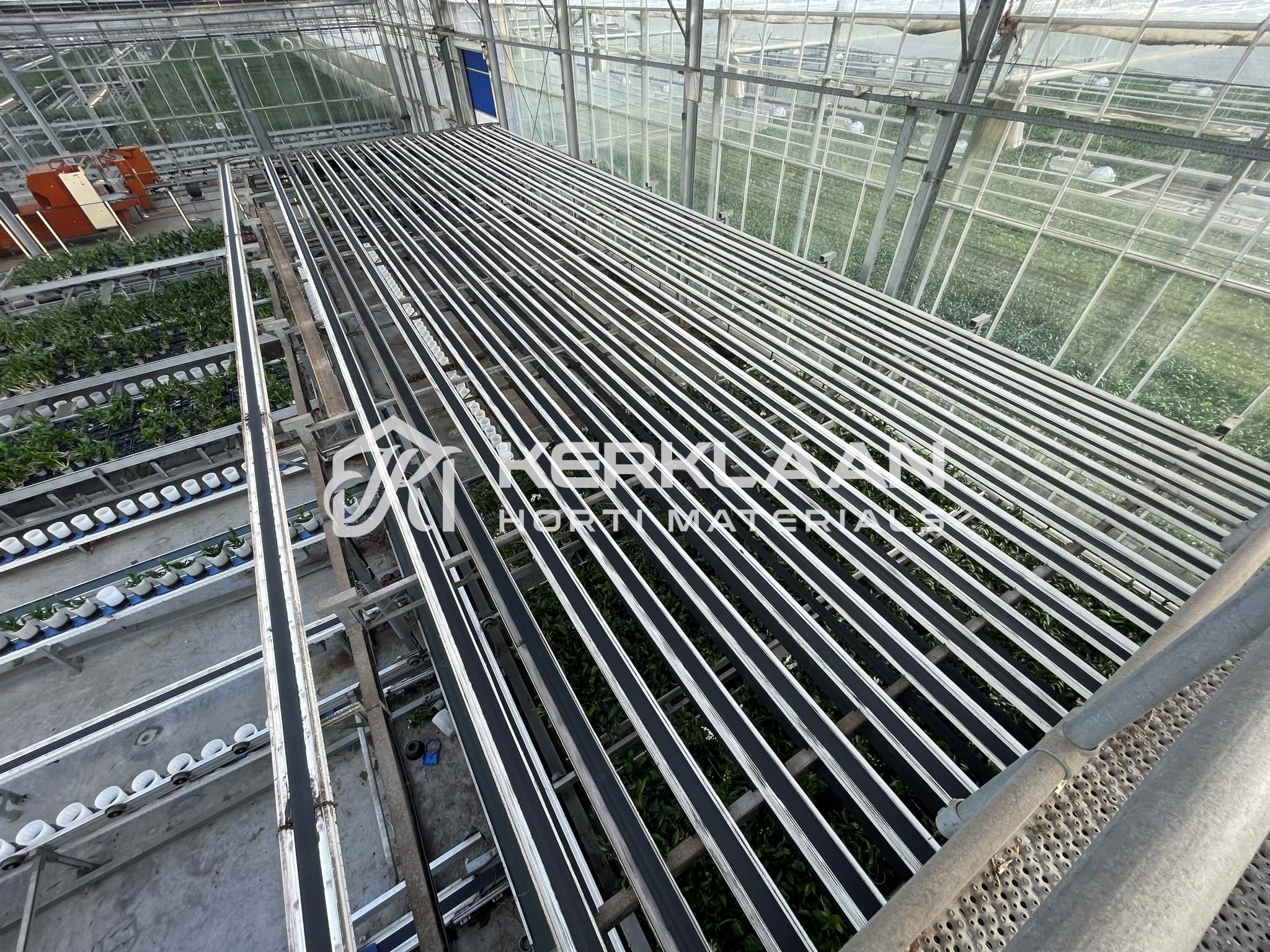

WPS system:
- Buffer system in the greenhouse under the roll containers (612m²)
- Stick stabbing station and camera sorter
- 2nd cultivation layer - Delivery, sorting and buffer system | 3950 m² buffer belt
- Including:

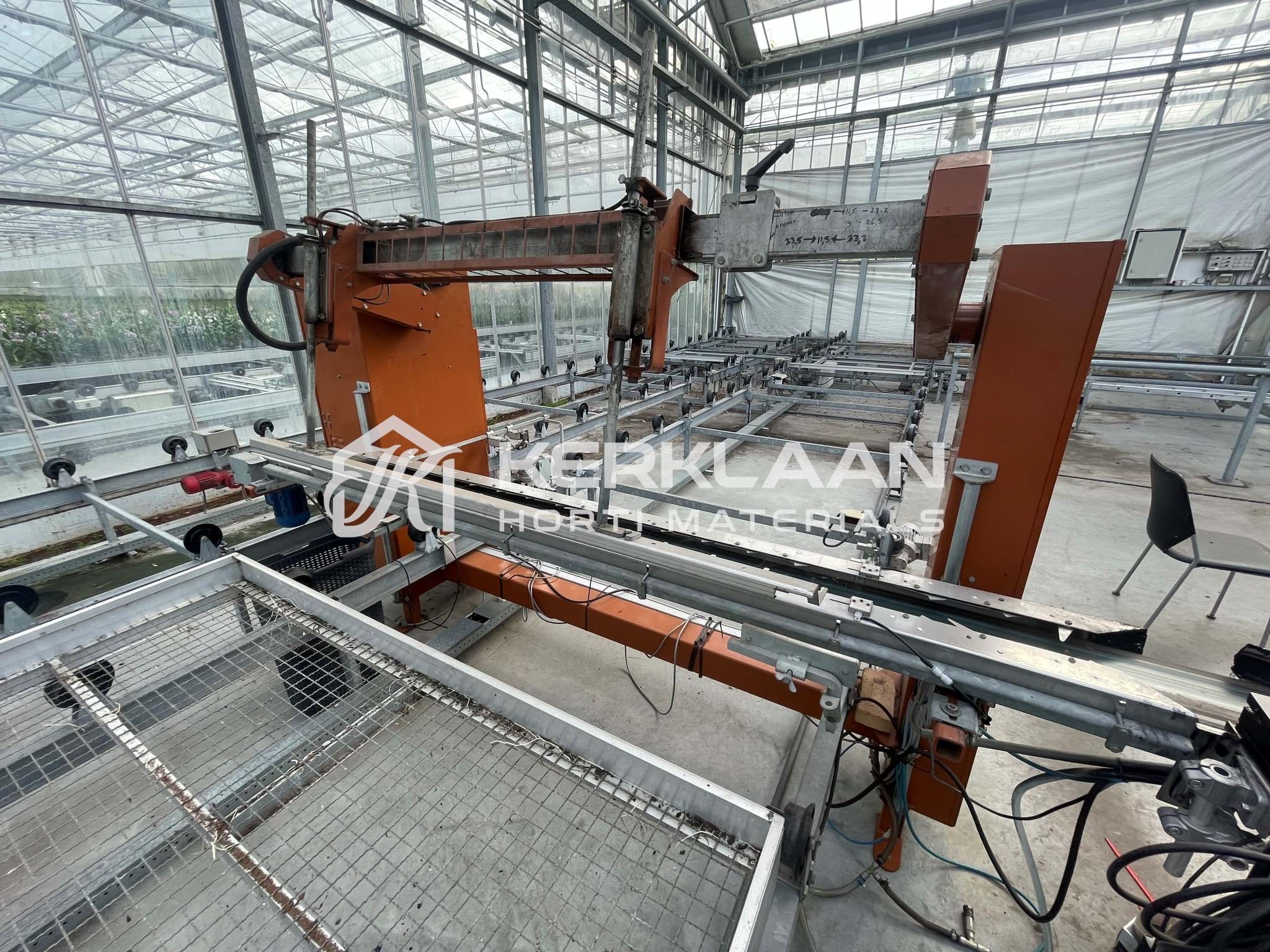

- Javo potting machine | box tipper | drop robot | label printer
-
i
Heating installation
ø51 mm heating pipes; 28,440m
Heating installation:
ø57 mm heating pipes; 7,331m
ø63 mm heating pipes; 8,300m - Ø 51, 57, 63 mm heating pipes | Main and distribution pipes.
-
i

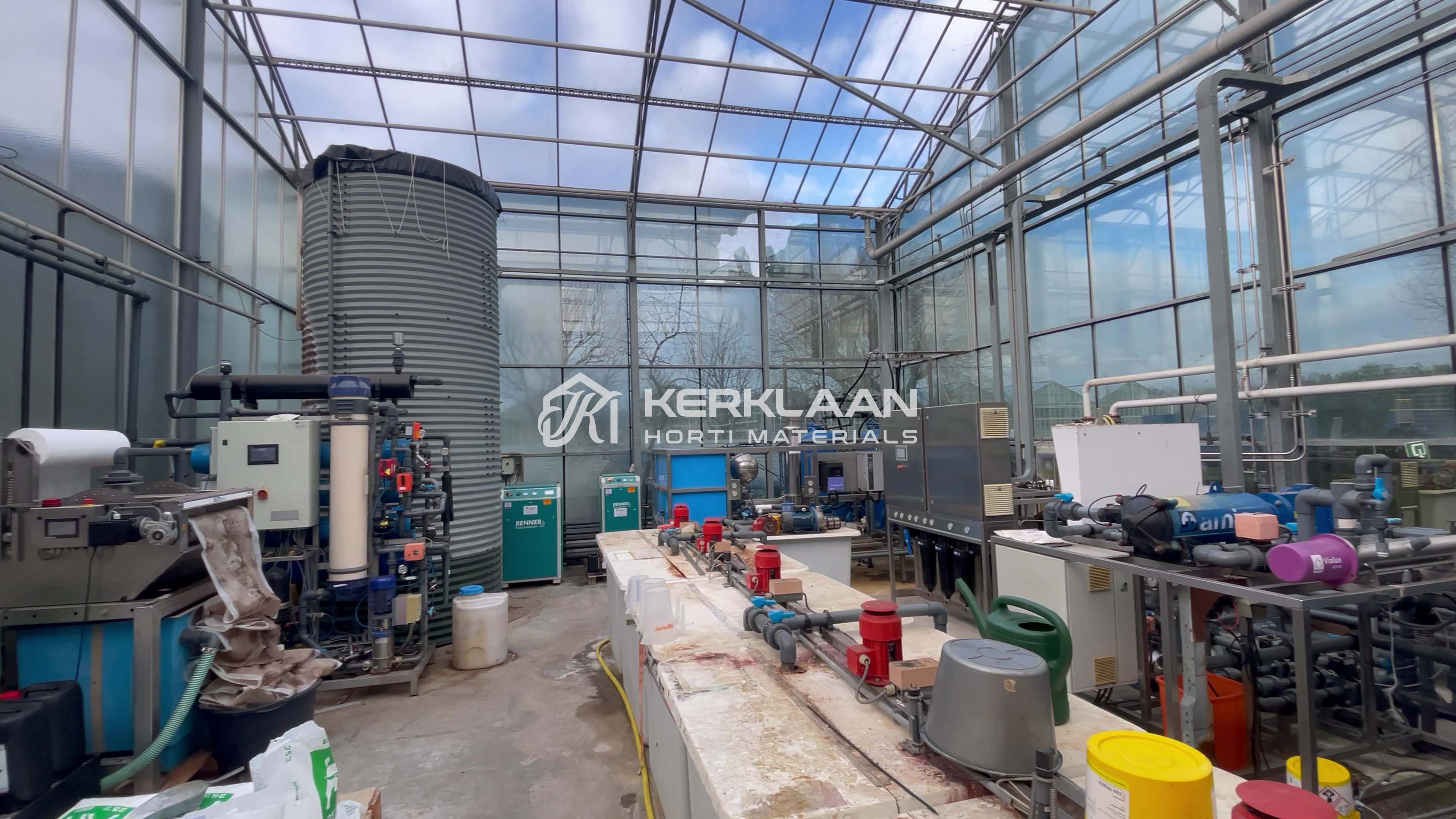

Water technical installations
- Rain pipe incl. main and semi-main pipes.
Water technical installations:
- Priva vialux drain water disinfectant
- Osmosis installation complete incl. accessories.
- Enthoven dosing unit incl. vessels, filters and pumps
- Cloth filter incl. accessories
- Water silo - Rain pipe | Complete water technical room
-
i
Fog installation
+ 18 pieces mist fans
Fog installation: - Vifra fog system | 3,233 m tube spray tube | incl. 2 pump units
- Cooling installation:
- Carrier Cooling installation incl. 6 pieces Goedhart cooling units
- Fans:
- 60 stuks
- Including:

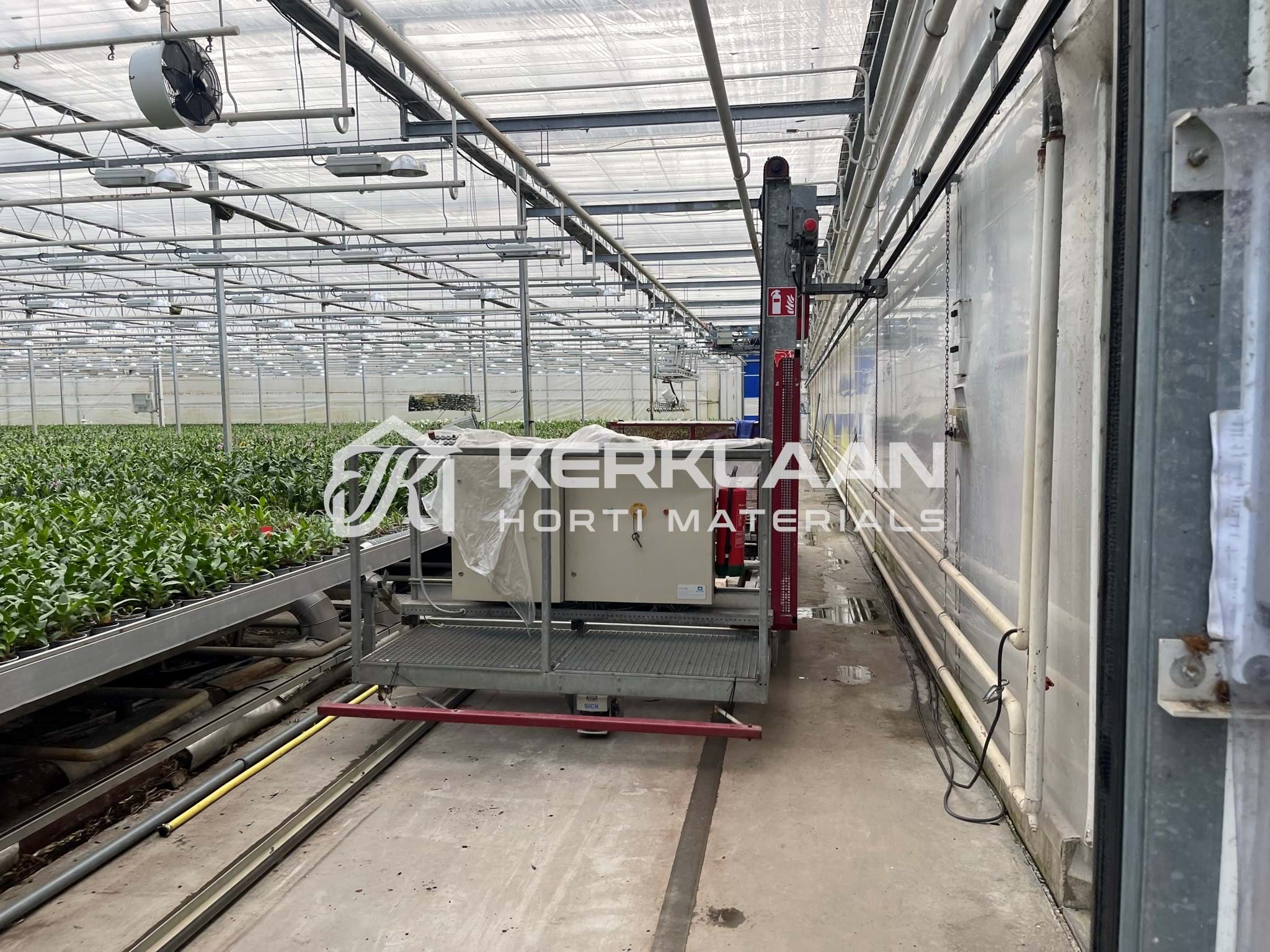

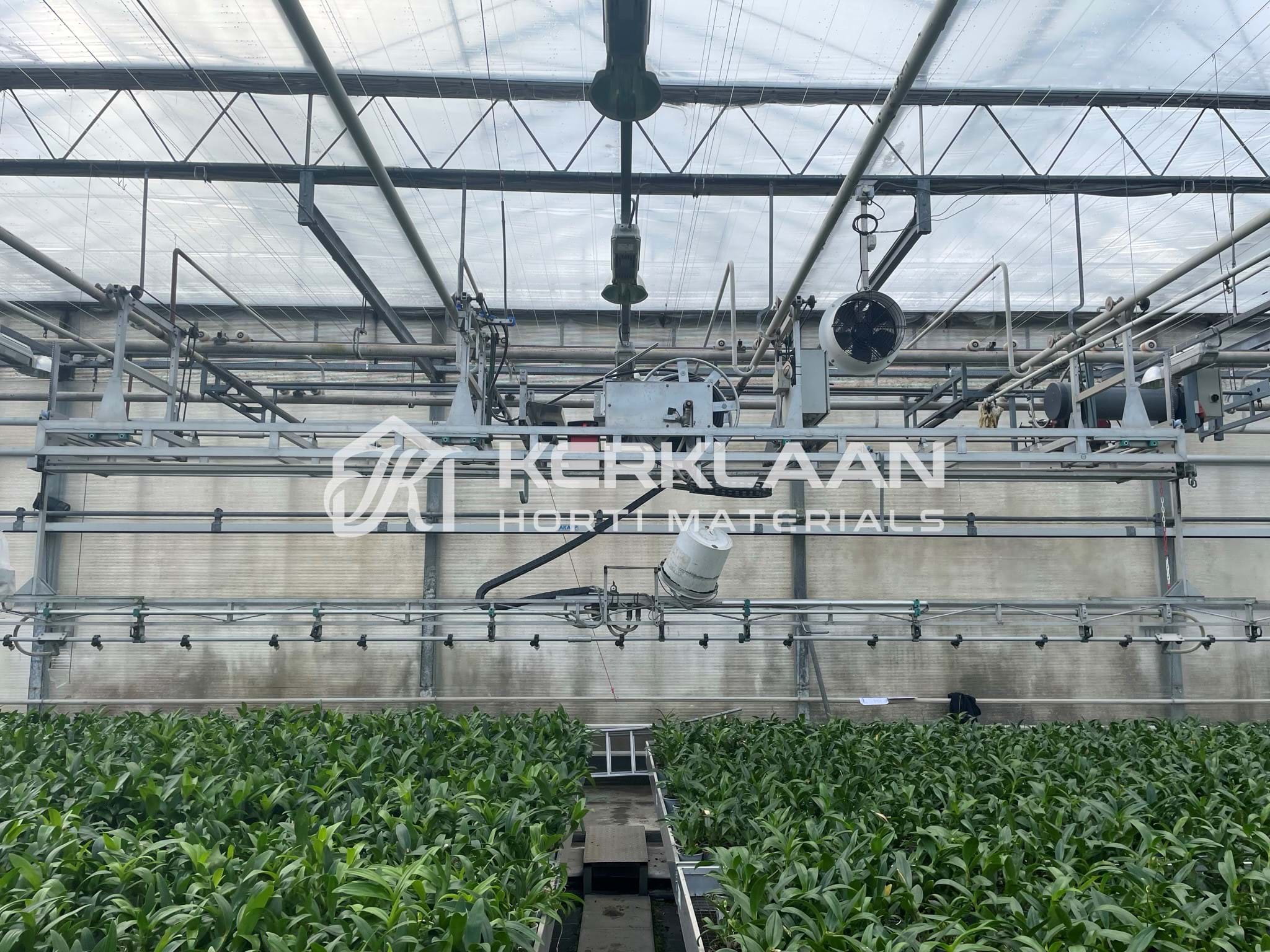

- Automatic monorail spray boom incl. mother carriages
- Miscellaneous:
- Speed roller doors | Propositions | roller conveyors | Monrail carts | Control cabinets
Available to view until june 2023
